Description
▓ Stock Ref: T2
4x
Important Notice:
Please read the descriptions thoroughly before you buy it as these sensors are made by Continental for Land Rover & Jaguar but, is the same with Volvo, Ford… etc, some buyers having problems activating or programming the sensor….every single sensor will be checked and activated prior to the dispatch therefore i am 100% sure it is working . it will be ideal if you can send us: Vehicle Make, Model & Reg Number, then we can activate it accordingly.
“Not letting us know the year model and make of the car will be sent the TPMS as default Volvo“
Fits:
Volvo C30 — (01/2007-12/2013)
Volvo C30 Electric — (12/2010-12/2013)
Volvo C70 — (01/2006-06/2014)
Volvo S40 — (01/2004-12/2014)
Volvo S60 — (03/2010-12/2015)
Volvo S80 — (01/2006-06/2016)
Volvo V40 — (01/2012-06/2016)
Volvo V50 — (01/2004-06/2014)
Volvo V60 — (09/2010-06/2016)
Volvo V70 — (01/2008-06/2016)
Volvo XC60 — (05/2008-06/2016)
Volvo XC70 — (01/2008-06/2016)
Descriptions & Specifications:
Tyre Pressure
Monitoring System (TPMS) For Systems that uses 433MHz
Made
for Land Rover & Jaguar but Fits Volvo and Ford and Some other Models
New and Genuine Part
OEM
Part Number: FW93-1A159-AB
Equivalent
to Volvo Part
Numbers: 31201481 and 31414189
Continental and VDO Part Number: S180052028C
This
Sale is for
FOUR Tyre Pressure Sensor Only.
They
are Pre-Activated But this is Not Guaranteed 100%, therefore you may need to activate them again.
You
may need to program the sensors, some models doesn’t need programming.
Some
models after fitting them and drive off for couple of miles they
will be picked up by the system automatically
These
Sensors Are for Cars with Monitoring System, it is Not something you can added
to your car.
This
is a Direct Replacement parts
Fits both LHD & RHD cars

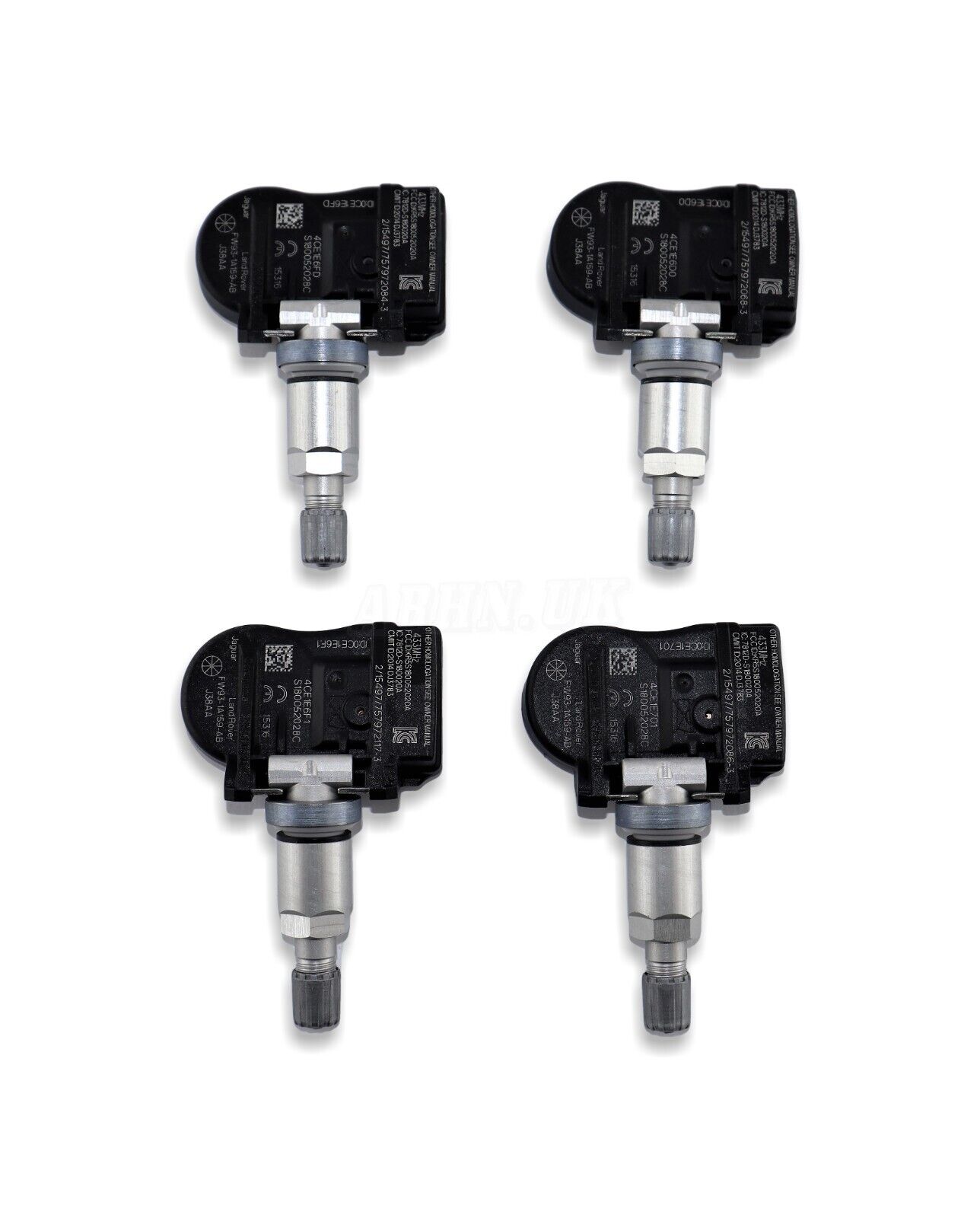

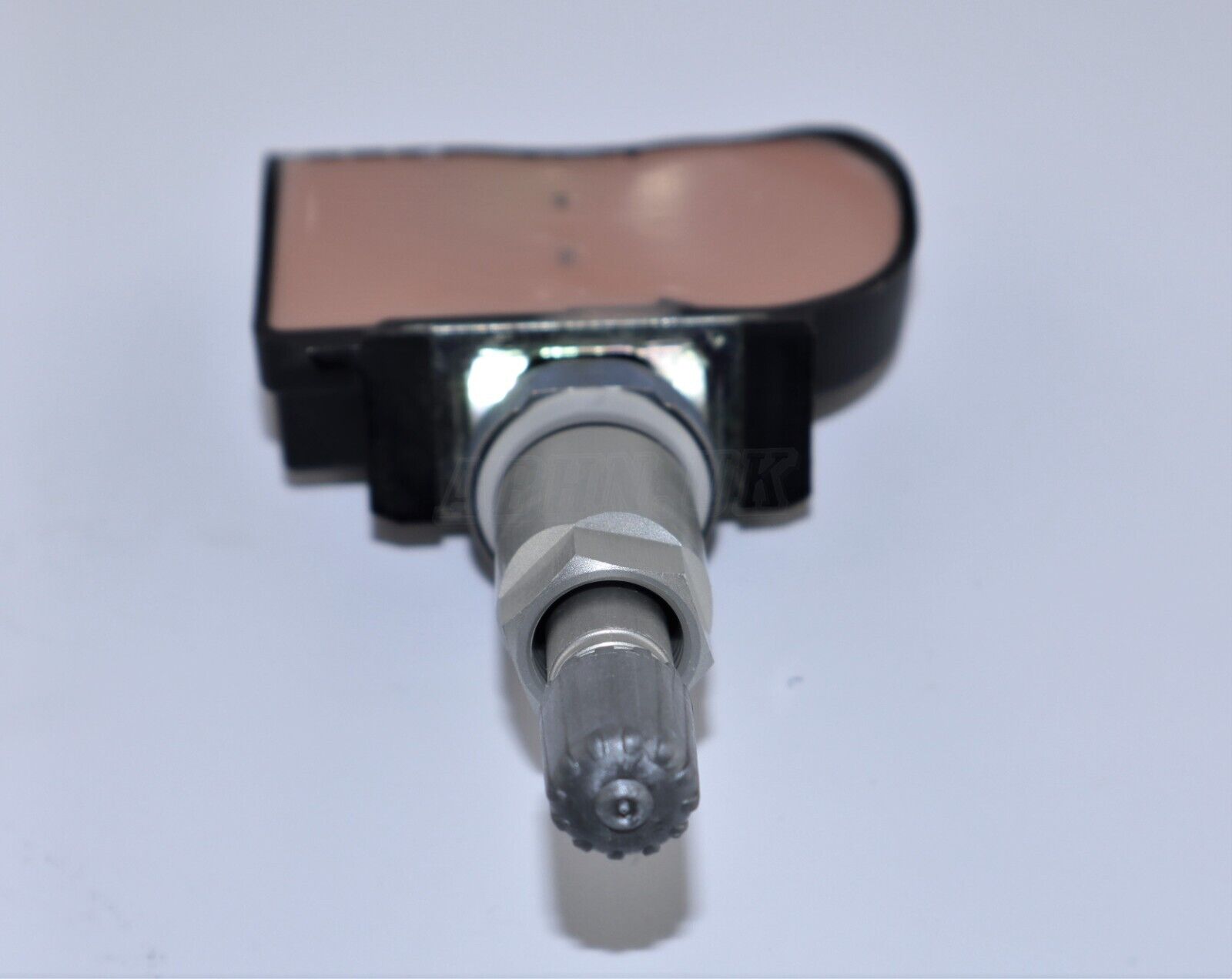

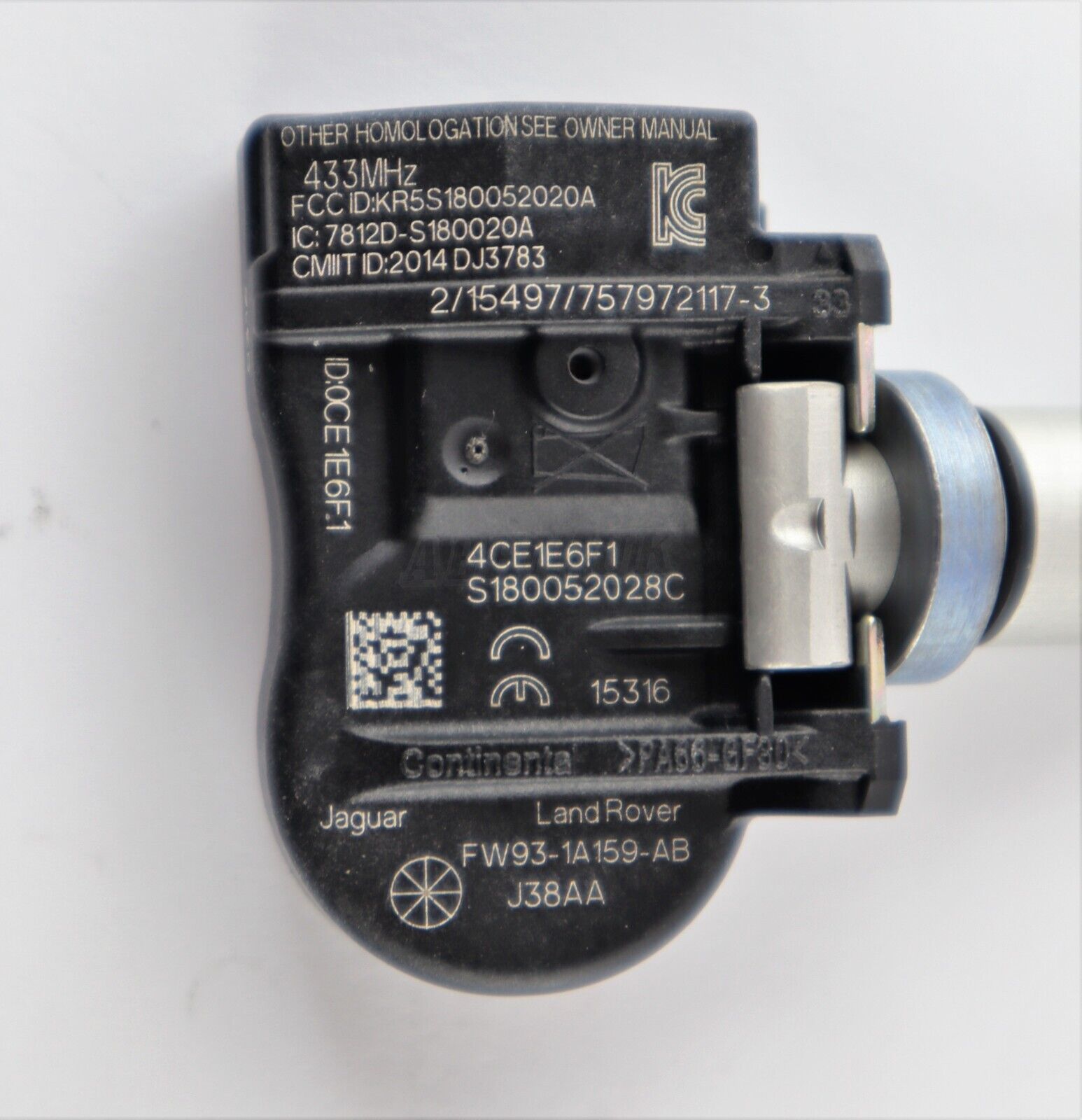

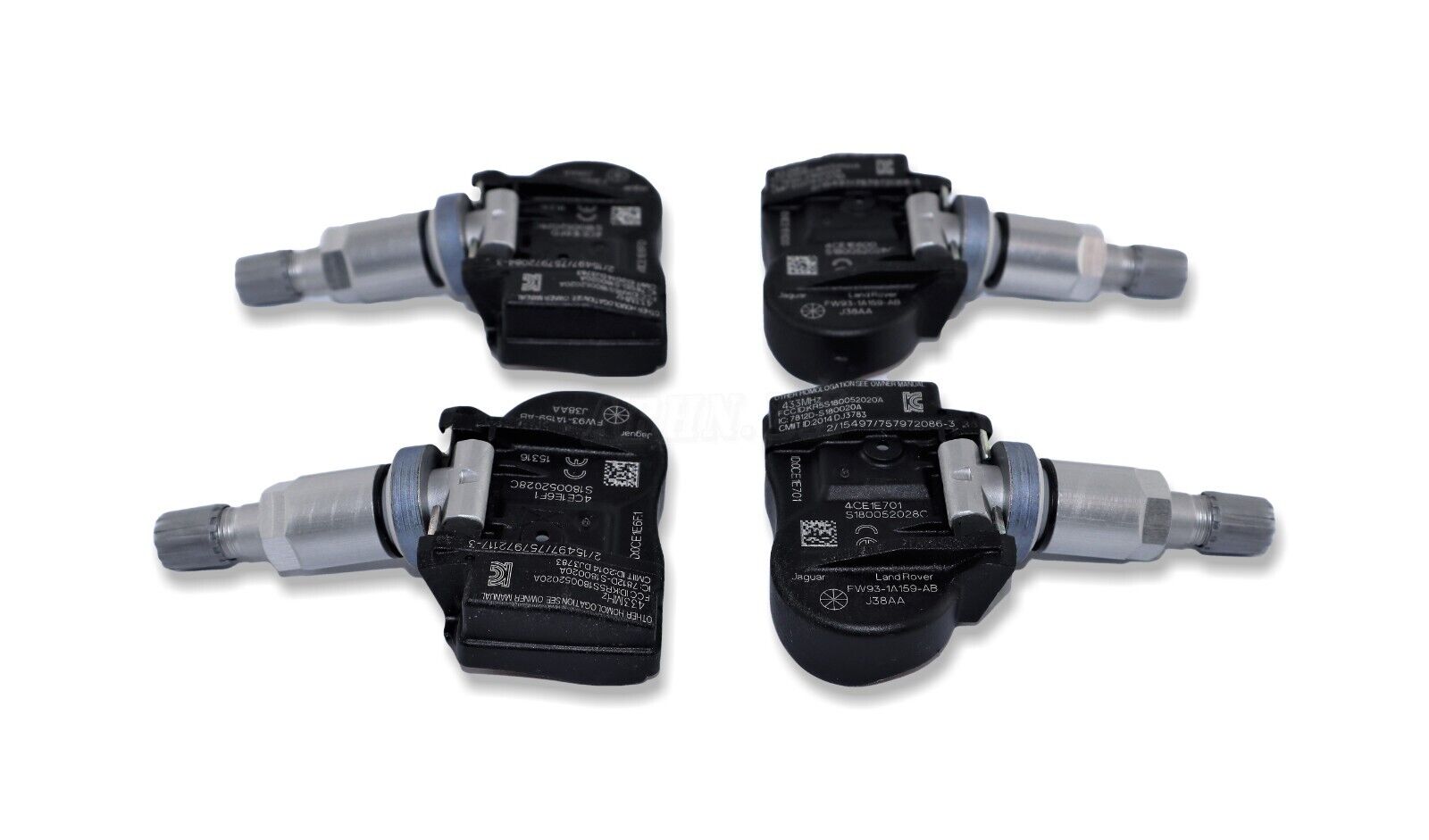

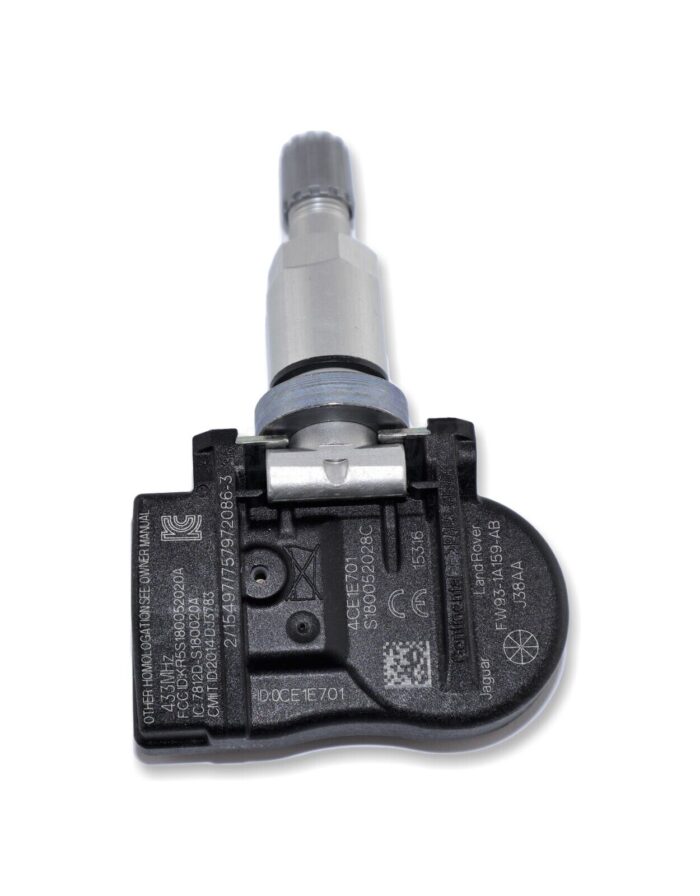

Photos are for the actual item
Condition: New
Free Postage within United Kingdom
The same day dispatch (cut off time 4:00 pm)
We are not liable for any work done to your are involving this item, every garage has different options and different reasons if they can not make it work.
General Information:
Tire Pressure Monitoring System TPMS
The TPMS detects even small pressure fluctuations, locates the affected tires and informs the driver with warnings of varying urgency. Function: A co-rotating wheel module with an integrated valve measures tire pressure and temperature and transmits these data as an HF radio signal. Two functional variants have been developed to receive and process the data:
TPMS A: 4 wheel modules, 4 antennas with HF coupler
The receiving antennas are located on the connecting cables for the wheel speed sensors. They send the data to the EBS-ECU, which then analyses them in an intelligent warning strategy unit. This is the only system that can offer this technology without any additional cable, receiver and ECU.
TPMS B: 4 wheel modules, 1 central antenna
This more economical solution with a central receiver in the EBS control unit is used when the maximum transmitting power is allowed for the wheel modules. Through a combination with DDS and intelligent data processing, this system is able to assign the 4 received pressures to the 4 wheels (autolocation function) even with only one receiving antenna. In case of failure of sensors, DDS is used as a fallback solution.
